Guilin Microtech Optical Instrument Co., Ltd. (MTO)

Phone：+86-773-5823609

PRODUCT

MTDY Object Space Telecentric Lens Fixed Magnification Series

◆  Telecentric Lens is that placed aperture diaphragm on image space focal plane of optical system.

◆  When aperture diaphragm on image space focal plane, even object distance changes and image distance changes, image height doesn’t changes, then object size of measure will not change.

◆ Telecentric Lens is applied in industry precision measurement. Distortion is very small. High-powered one can have no distortion.





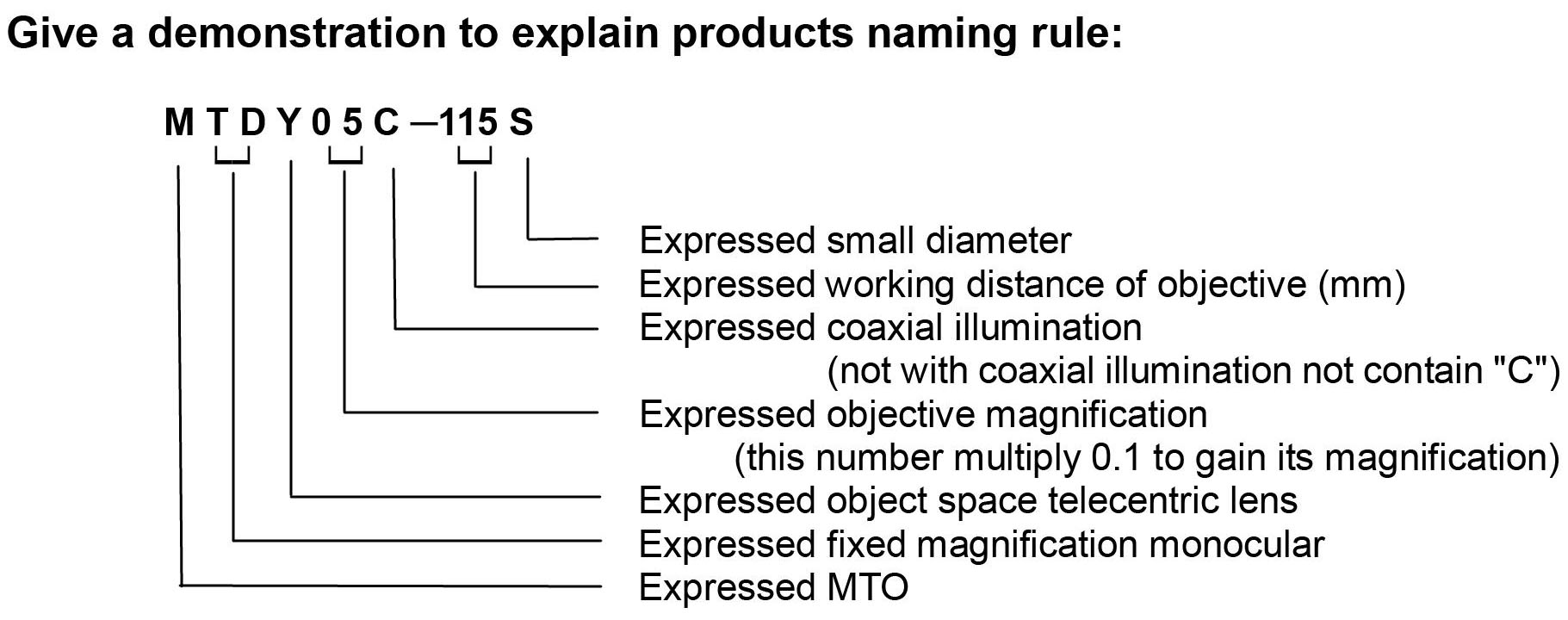

1. MTDY Object Space Telecentric Lens model and specification gather (working distance: 65mm)
Model

Objective magnification

Working distance (mm)

Total magnification

Field of video (mm)

NA

Resolution (μm)

Depth of field(mm)

Distortion

1/3"、9"

1/3"、17"

MTDY08-65

0.8X

65

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.09%

MTDY08C-65

0.8X

65

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.09%

MTDY10-65

1X

65

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.13%

MTDY10C-65

1X

65

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.13%

MTDY20-65

2X

65

76.2X

43.9X

2.4X1.8

0.05

6.7

0.4

0.3%

MTDY20C-65

2X

65

76.2X

43.9X

2.4X1.8

0.05

6.7

0.4

0.3%

MTDY30-65

3X

65

114.3X

215.9X

1.6X1.2

0.06

5.6

0.22

0.22%

MTDY30C-65

3X

65

114.3X

215.9X

1.6X1.2

0.06

5.6

0.22

0.22%

MTDY40-65

4X

65

152.4X

287.9X

1.2X0.9

0.039

8.6

0.26

0.24%

MTDY40C-65

4X

65

152.4X

287.9X

1.2X0.9

0.039

8.6

0.26

0.24%


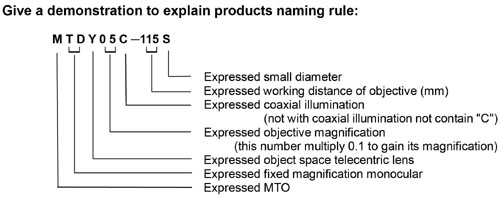

2. MTDY Object Space Telecentric Lens model and specification gather (working distance: 115mm)
Model

Objective magnification

Working distance (mm)

Total magnification

Field of video (mm)

NA

Resolution (μm)

Depth of field(mm)

Distortion

1/3"、9"

1/3"、17"

MTDY05-115

0.5X

115

19.1X

36X

9.6X7.2

0.02

16.8

4

0.1%

MTDY05C-115

0.5X

115

19.1X

36X

9.6X7.2

0.02

16.8

4

0.1%

MTDY08-115

0.8X

115

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.6%

MTDY08C-115

0.8X

115

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.6%

MTDY10-115

1X

115

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.3%

MTDY10C-115

1X

115

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.3%

MTDY20-115

2X

115

76.2X

143.9X

2.4X1.8

0.04

8.4

0.5

0.17%

MTDY20C-115

2X

115

76.2X

143.9X

2.4X1.8

0.04

8.4

0.5

0.17%

MTDY30-115

3X

115

114.3X

215.9X

1.6X1.2

0.05

6.7

0.266

0.17%

MTDY30C-115

3X

115

114.3X

215.9X

1.6X1.2

0.05

6.7

0.266

0.17%

MTDY40-115

4X

115

152.4X

287.9X

1.2X0.9

0.053

6.3

0.188

0.16%

MTDY40C-115

4X

115

152.4X

287.9X

1.2X0.9

0.053

6.3

0.188

0.16%

Note:
1. The depth of field is the value of parsing images if you use 1/2" CCD camera and monitor of level 320 line.(imaging surface concessional confusion circumference: 40μm)
2. Resolution is the theory resolution of wavelength in 550nm.
3. The largest compatible CCD: 1/2"
4. Install dimension: C-mount, the whorl is 1 inch 32 button.
5. In the line of total magnification, “1/3"” is expressed CCD camera's specifications, “9"”、“14"” is expressed monitor's screen dimensions. “1/3"、9"” is expressed the total magnification of MTDY series Object Space Telecentric Lens in 1/3" CCD camera and 9" monitor.
